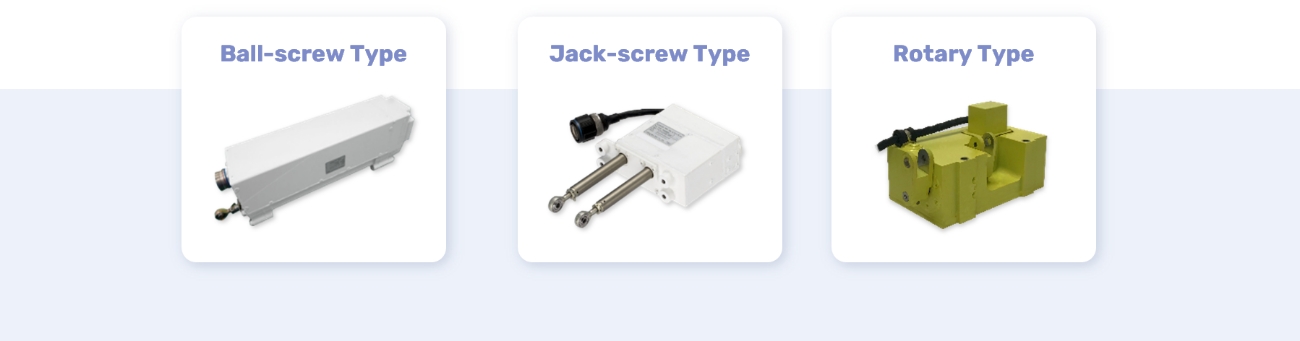

Which type of EMAs are you looking for?You can choose Tamagawa Electro-Mechanical Actuators best fitted for your purposes
Tamagawa Seiki Co., Ltd. has a variety of Electro-Mechanical Actuators in product lineup.
Not only for standard catalogue models, there are some design options to satisfy customer’s needs.

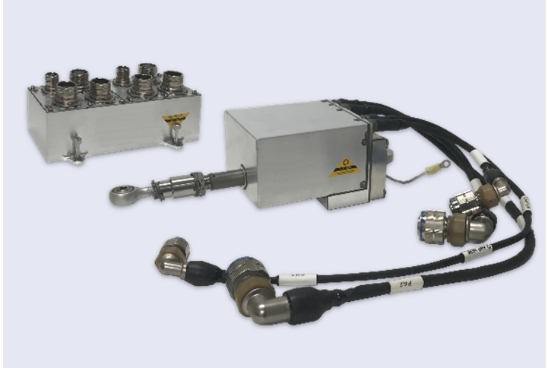

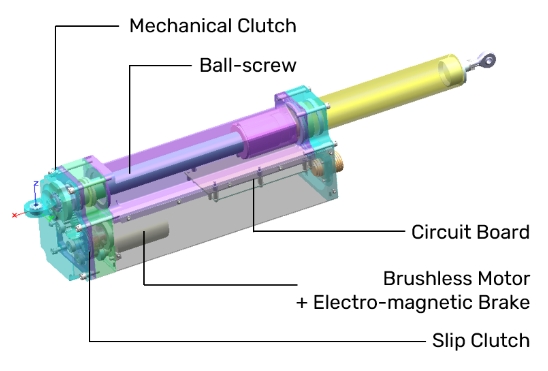

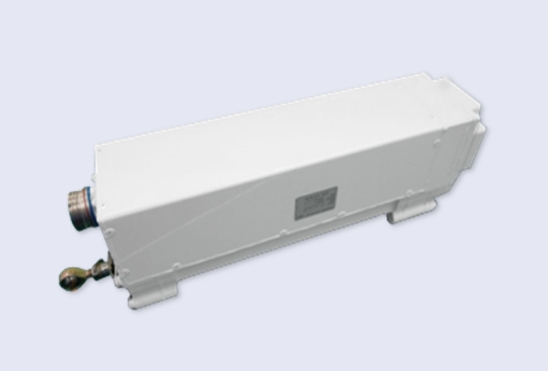

01.Ball-screw Type Linear Actuator
Customizing the fitting & electrical specification, Tamagawa can design and produce Ball-screw Type Linear Actuators to meet customer's requirements for stroke, operating force and speed.
Features
- Both types of Irreversibility & Reversibility are available.
- Mechanical Interface Options: Spherical Bearing or Cardan Joint (See below)
- Cable Options: Pigtail or Direct Connector
- In-house Design / Manufacturing: Motor & Mechanical Parts
- Environmentally Resistance: Perfect Sealing applicable to Aircraft Wing
Products
Mechanical Interface
| Housing Front Side | Slide Head Side | |
|---|---|---|

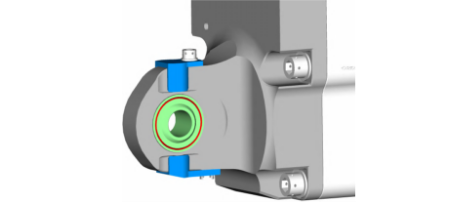

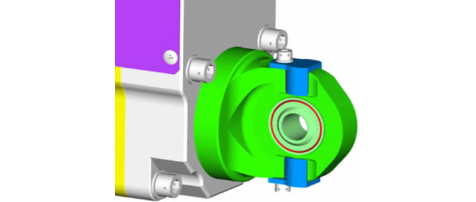

| Spherical Bearing |
|
|

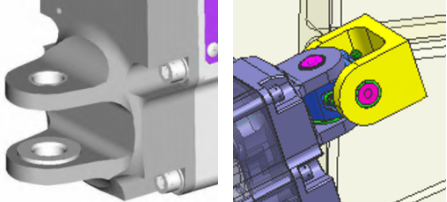

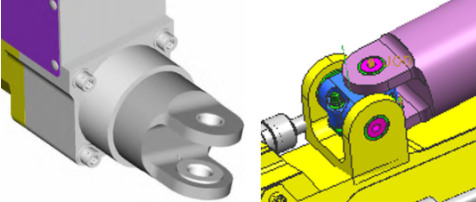

| Cardan Joint |
|
|

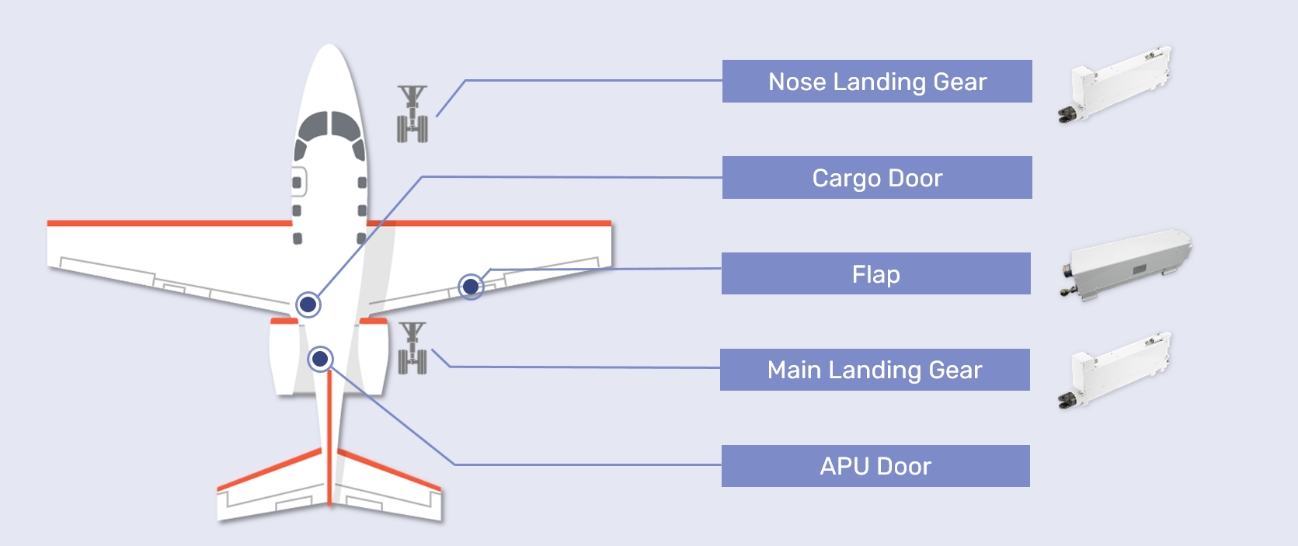

Applications

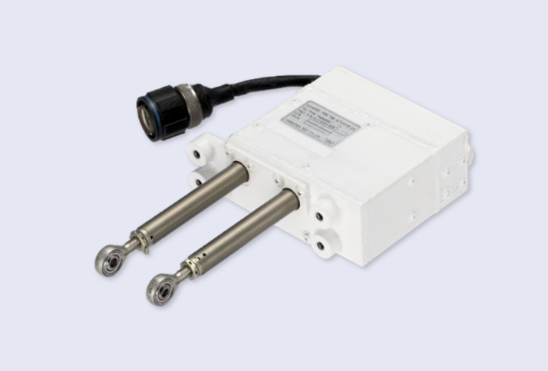

02.Jack-screw Type Linear Actuator

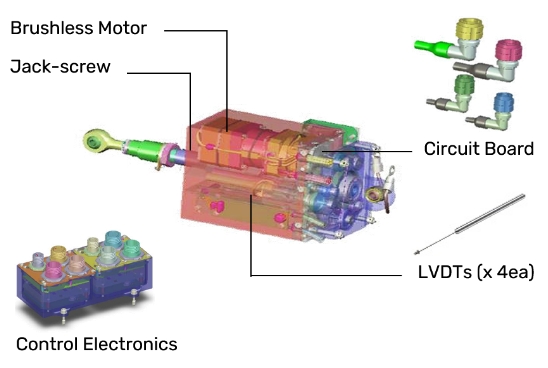

Tamagawa can provide a wide variety of Jack-screw (Acme-screw) Type Linear Actuators. Not only Actuator itself but also electrical motors, sensors, controllers and clutches integrated in Actuators are developed and produced in house.
Features
- Segregation: Dual load path and redundancy
- Only Irreversibility type is available
- Cable Options: Pigtail or Direct Connector
- In-house Design / Manufacturing: Gear Train & Motor & LVDT
- Environmentally Resistance: Perfect Sealing applicable to Aircraft Wing

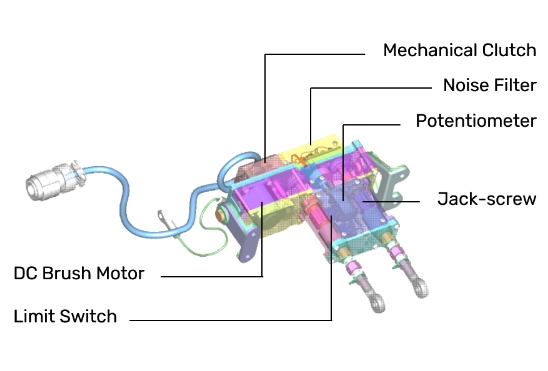

Products

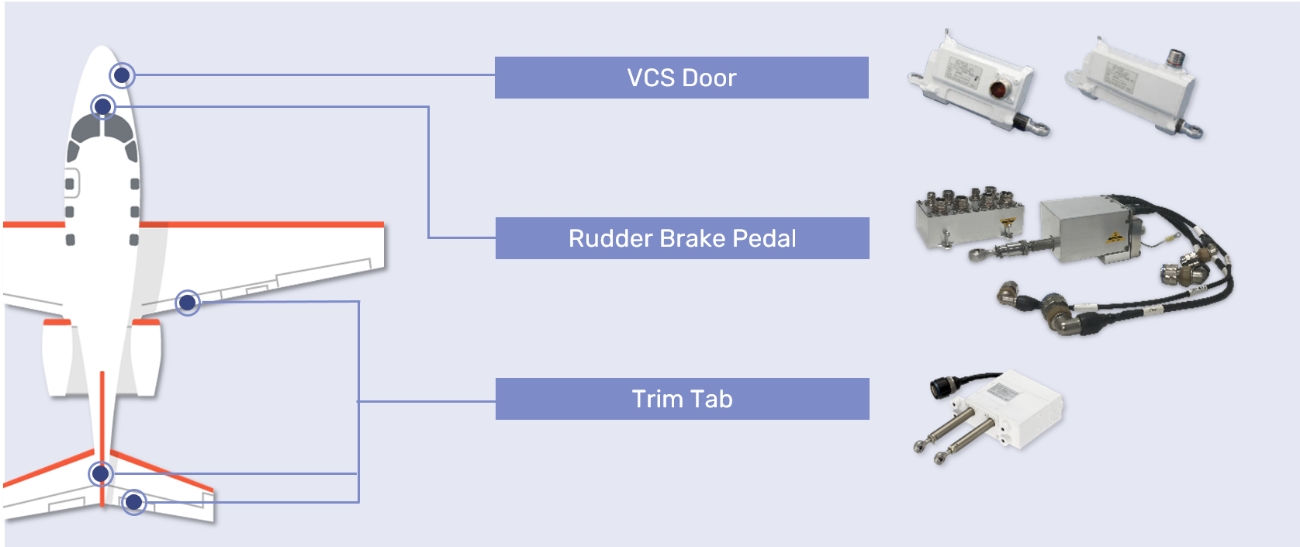

Applications
03.Rotary Actuator
Tamagawa has also experiences developing and manufacturing Rotary Actuators taking advantage of in-house design and manufacturing technology of gears.
Features
- Geared design: Planetary Gear & Gear Box
- Mainly used for Spoiler and Flap actuation
- Compact & Space-saving

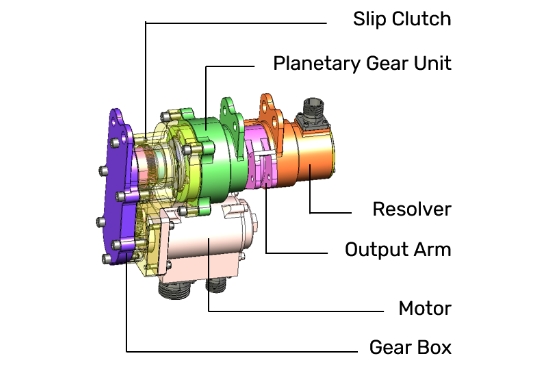

Products
Block Diagram
Specification
| Input Voltage | 28 V (18 to 32 V) |
|---|---|
| Current | 3.5 A |
| Stroke | 43.4 deg |
| Rated Load (Operating Load) | 183 Nm |
| Limit Load | 524 Nm |
| Slip Clutch Performance | 183 to 524 Nm |
| Brake Capability | 1,237 Nm |
| Operating Speed | 75 deg / sec |
| Position Detection | Resolver |
| Mass | 4,800 g |
RTCA DO-160G Requirements vs Actuator Designs
Tamagawa has detailed knowledge on Environmental Testing for Actuators based on RTCA DO-160G. Additionally, there is a prefectural plant having some of these Test Equipment near Tamagawa facility and we have easy access to the Test Chambers.
| Section | Item | Tamagawa Actuators | Key Design Factor |
|---|---|---|---|
| 4.5 | Temperature | Comply |
|
| 4.6 | Altitude | Comply | |
| 5 | Temperature Variation | Comply | |
| 6 | Humidity | Comply |
|
| 7 | Operational Shock and Crash Safety | Comply |
|
| 8 | Vibration | Comply | |
| 9 | Explosion Proofness | Comply | |
| 10 | Water Proofness | Comply |
|
| 11 | Fluid Susceptibility | Comply | |
| 12 | Sand and Dust | Comply | |
| 13 | Fungus Resistance | Comply | |
| 14 | Salt Spray | Comply |
|
| 15 | Magnetic Effect | Comply | |
| 16 | Power Input | Comply |
|
| 17 | Voltage Spike | Comply |
|
| 18 | Audio Frequency Conducted Susceptibility | Comply |
|
| 19 | Induced Signal Susceptibility | Comply | |
| 20 | Radio Frequency Susceptibility | Comply |
|
| 21 | Emission of Radio Frequency Energy | Comply | |
| 22 | Lightning Induced Transient Susceptibility |
Comply |
|
| 23 | Lightning Direct Effect | Comply |
|
| 24 | Icing | Comply | |
| 25 | Electrostatic Discharge | Comply | |
| 26 | Fire Flammability | Comply |
|

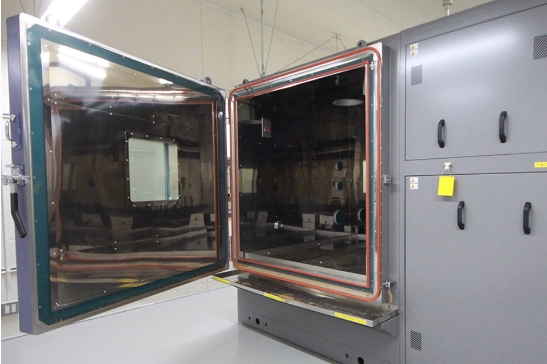

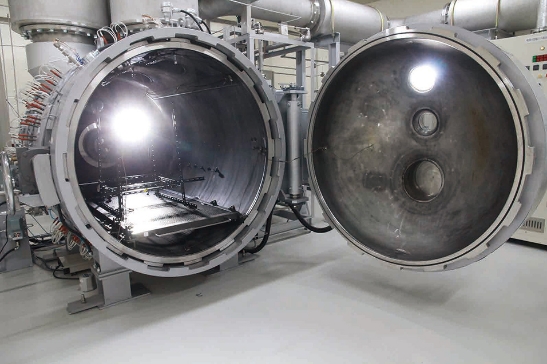

Explosion Proof Test Chamber
Temperature / Altitude / Humidity Icing Test Chamber
Don’t miss it!!Introduction in next Newsletter
OUR TECHNOLOGIES
CAN HELP YOUR DEVELOPMENT

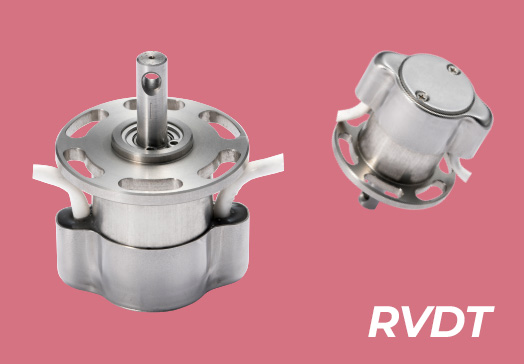

RVDT
Tamagawa RVDT provides linearly proportional voltages to the angular displacement with high reliability for vibration under extreme low/high temperature. Size 08, 10 and 11 are available in Tamagawa's RVDT series.

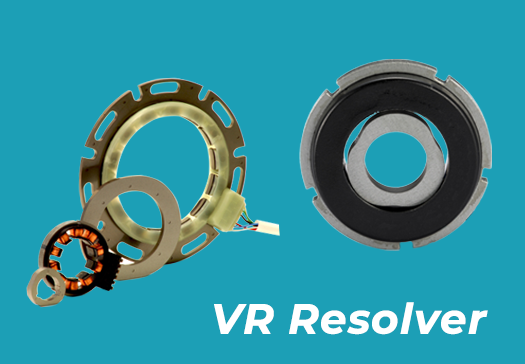

VR Resolver
TAMAGAWA VR Resolver is a high reliable absolute angular sensor, it needs winding on a stator only and offer VRX. Customization of fitting and electrical specification is available based on standard models.
